WEIKE CNC MACHINES
High precision
aluminum window and door profile machining

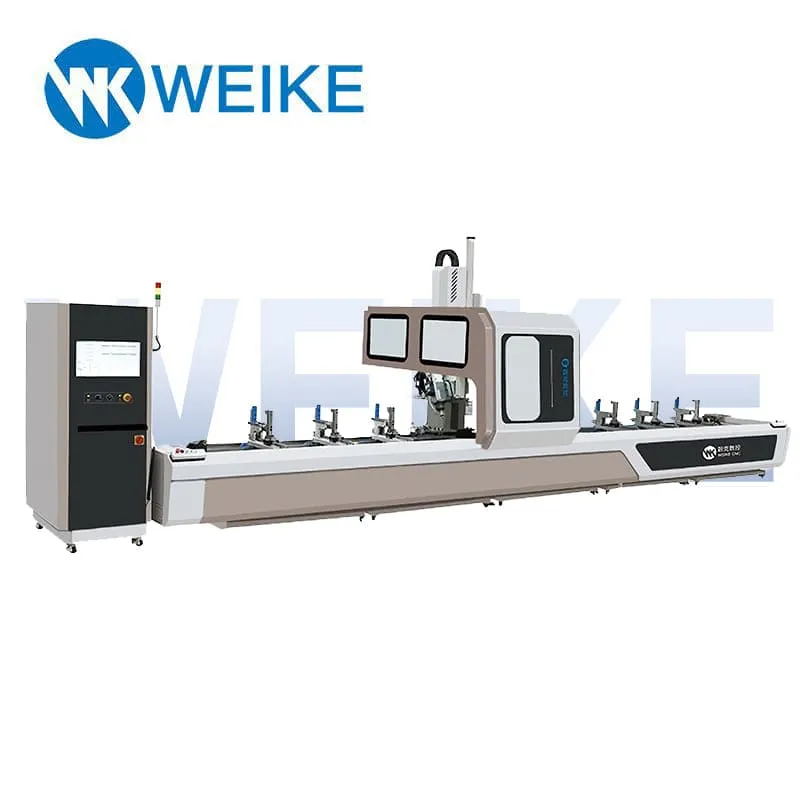

4 Axis CNC Drilling Milling Center
WEIKE 4 Axis CNC Drilling Milling Center is designed to complete multiple machining processes in a single clamping, including lock holes, drainage slots, air pressure balance holes, and installation holes. It enables an efficient “one-person window and door processing system” for customized production.
Equipped with a PA CNC control system, the machine supports continuous automatic milling and direct CAD drawing import. It is compatible with major window and curtain wall software, improving workflow efficiency and reducing manual errors.
The moving gantry single-arm structure ensures stable operation and high rigidity. Imported servo motors, ball screws, and linear guide rails guarantee precision and reliability. The 4-axis milling head allows multi-side machining, while the automatic lubrication and pneumatic clamping system improve performance and ease of operation.
Machining length: 7000 mm
Machining width: 400 mm
Machining height: 300 mm
Built for Efficiency and Versatility
Multi-process integration, advanced CNC control, and robust structure — engineered to maximize productivity and precision in profile machining.
Multi-Process Machining in One Setup
Completes drilling, milling, slotting, and hole processing in a single clamping for maximum efficiency.
Advanced CNC System Integration
Supports CAD import and seamless connection with major window and curtain wall software.
High Stability Structure
Moving gantry single-arm frame design ensures smooth operation and enhanced rigidity.
Precision & Reliability Components
Equipped with imported servo motors, ball screws, and linear guides for consistent high-accuracy performance.
HIGH-PERFORMANCE MACHINE PARAMETERS
Equipment Parameters
Model
WSJ4-CNC-7000
Spindle Power
12 kw
Tool Magazine Type
Rotary tool magazine
Machining Length
7000mm
Machining Width
400 mm
Machining Height
300 mm
Length Accuracy
±0.1 mm
Feeding Speed
0-100 m/min
Dimensions
17000 × 3000 × 2900 mm
X-axis Travel
7000 mm
Y-axis Travel
1500 mm
Z-axis Travel
600 mm
REAL FEEDBACK FROM THE SHOP FLOOR
Our Customer Reviews
ENGINEERED FOR PRECISION. BUILT FOR RELIABILITY.
Why Choose WEIKE CNC
Premium Components
Built to Last
Every CNC machine is built with top-quality parts from Siemens, Schneider, Omron, and Festo, delivering consistent precision and reliability.
Custom Solutions
Tailored for You
We design bespoke machines to meet unique production needs, combining innovation with efficiency for every customer.
Global Support
Service Everywhere
Our team provides online troubleshooting and on-site service in 50+ countries, keeping your machines running smoothly.
REQUEST A CUSTOM QUOTE
Get Your Quote Today
Contact us today
- +86 15806601778
- [email protected]
- Jinan, Shandong, China
Contact us today
- +86 15806601778
- [email protected]
- Jinan, Shandong, China
F.A.Q.
Have any Question?
What applications is this machine suited for?
The 4 Axis CNC Drilling Milling Center is suitable for aluminum, copper, PVC, and industrial profiles. It is widely used in windows, doors, curtain walls, and other complex machining applications.
Does it support intelligent data management?
Yes. It connects to ERP and window design software for automatic material tracking and barcode labeling.
Can this machine be customized for specific needs?
Yes. As a leading manufacturer, WEIKE CNC proudly offers OEM and ODM services, allowing fully customized and flexible configurations to meet your material types, cutting length requirements, or production line specifications.
Can this machine handle complex machining tasks?
Yes. With its 4-axis milling head, CAD integration, and multi-process capability, the machine can efficiently handle customized designs and complex machining requirements with high precision.
Does the machine support automatic tool changing?
Yes. It is equipped with a 12-position tool magazine for automatic tool changing.
What maintenance is required for optimal performance?
Routine maintenance includes checking and lubricating the guide rails, ensuring spindle alignment, and cleaning debris after each shift. Following these steps helps maintain precision and prolong the machine’s lifespan.
